Ergotron LX Desk Mount Lcd Display Arm Polished Aluminium

Find your best view, save desk space and discover your most productive self, thanks to the LX Desk Monitor Arm. Place your screen where you need it with patented Constant Force™ Technology, and then reclaim a space full of opportunities by folding the arm and pushing it aside during a much-needed screen break.   

Features

• Comfortable fit

  Offers ergonomic monitor positioning using patented Constant Force™ Technology

• More motion

  Luxury arm easily adjusts monitors up to 34" in size

• Saves space

  Places screen in the best view to tackle each to-do

• Sleek build

  Streamlined look enhances your work area

• Easy storage

  Folds to fit under storage shelves or cabinets

• Quality design

  Built for years of use by passing our 10,000-cycle motion test

Specifications

• UPC: 698833011463
• Part Number (color):
• 45-241-026 (polished aluminum)
• Description: LX Desk Mount LCD Monitor Arm
• Includes arm, extension, base, 2-piece clamp, grommet mount, 7" pole, attachment hardware
• Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)
• Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
• Patented Constant Force™ motion technology provides premium ease-of-use display adjustment

Improved LX Arm Features & Benefits

• Aluminum construction offers greater durability and enhanced aesthetics
• Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
• Snap-fit cap secures interface of arm to extension for greater stability
• Cable management feature routes cables under the arm, out of the way

• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
• * Weight Capacity: 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
• Note: If installed on WorkFit-T or WorkFit-TL, maximum allowable monitor weight is reduced to 14 lbs (6.4 kg). A separately ordered Grommet Mount (98-017) is required for attachment
• † Tilt Range: 70° backward, 5° forward

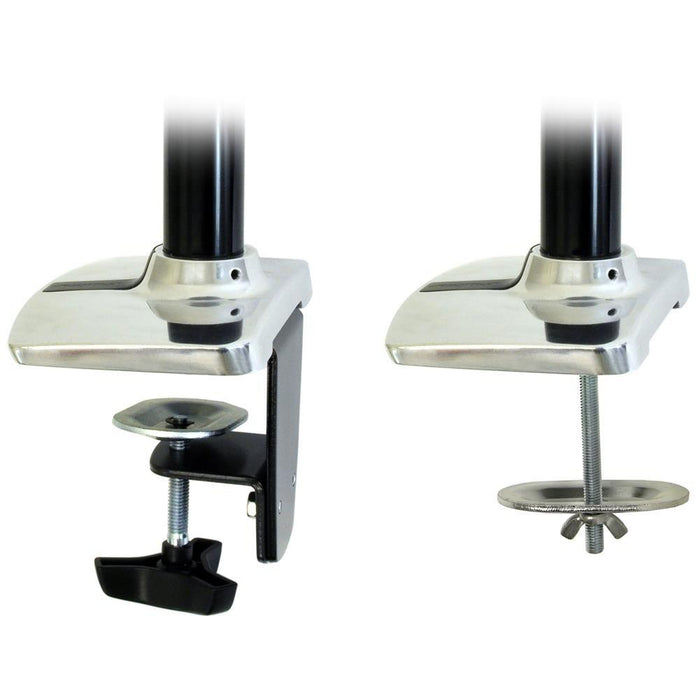

• Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick
• Grommet Mount attaches through surface holes .31" to 2" (8 to 50 mm) wide and up to 2.25" (57 mm) thick. NOTE: grommet mount not included with white model of arm, 45-490-216
• Product Weight: 7.8 lbs (3.6 kg)
• Shipping Dimensions: 22.2" x 9.9" x 5.6" (56 x 25 x 14 cm)
• Shipping Weight: 9.75 lbs (4.4 kg)
• Warranty: Ten (10) years
