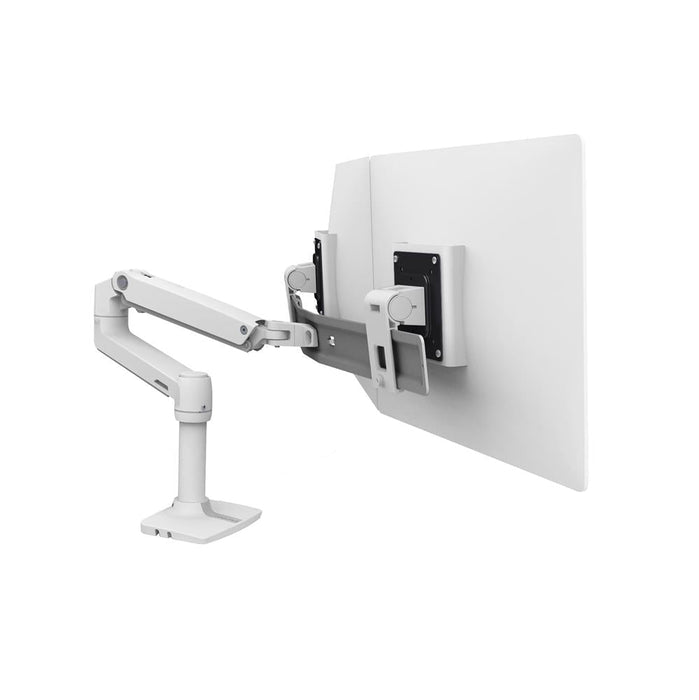

Ergotron LX Dual Direct Desk Mount Arm White

Find your best view, save desk space and discover your most productive self, thanks to the LX Desk Dual Direct Arm. The low-profile monitor cross-bar uses a compact range of motion to keep your space, your space. Project wrapped up? Reclaim a space full of opportunities by folding the arms and pushing them aside during a much-needed screen break.

• Comfortable fit

  Moves two monitors in one easy motion

• Dual purpose

  Supports two screens up to 25" in size

• Maximize space

  Adjusts monitors in a compact range of motion

• More workspace

  Free up your desktop for office essentials

• Sleek build

  Streamlined look enhances your work area

• Quality design

  Built for years of use by passing our 10,000-cycle motion test

Specifications

• UPC: 698833058208
• Part Number (color):
• 45-489-026 (polished aluminum)
• 45-489-224 (matte black)
• 45-489-216 (white)
• Description: LX Desk Dual Direct Arm
• Includes LX Arm, extension, desk clamp, dual bow, two monitor pivots, 7" pole, monitor mounting hardware
• ** Maximum outside width of display is 25.1" (63.8 cm) when displays are 1.8" (4.8 cm) thick; 24.8" (63 cm) wide when monitor is 2.6" (6.6 cm) thick. Accommodates most displays with screen–size up to 25" as well as some displays with screens as large as 27". Actual allowable width of displays will vary slightly depending on display thickness
• * Weight Capacity: Maximum individual LCD weight = 2–11 lbs (.9–5 kg) per monitor. Total weight capacity = 4–22 lbs (1.8–9.9 kg)
• Note: If installed on WorkFit-T or WorkFit-TL, maximum allowable individual monitor weight is reduced to 4.8 lbs (2.2 kg). A separately ordered Grommet Mount (98-017) accessory is required for attachment
• ‡ 13" (33 cm) vertical height adjustment with total monitor weight less than 17 lbs (7.7 kg). If total monitor weight greater than 17 lbs (7.7 kg), the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm)
• † Tilt Range: 13° backward, 17° forward. Each monitor tilts individually
• Arm extends out up to 24.3" (61.7 cm) extended reach
• Mounting Standards: VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
• Mounting Options: Desk Clamp attaches to surface edge .4" to 2.4" (10 to 60 mm) thick
• Streamline cable management that routes cables under arm and within extension
• Portrait/landscape rotation with lockout
• Handle for Dual Direct Arm available as an accessory (98-037-062)
• Product Weight: 11.5 lbs (5.2 kg)
• Shipping Dimensions: 32.8" x 13" x 7" (83 x 33 x 18 cm)
• Shipping Weight 15.5 lbs (6.6 kg)
• Warranty: Ten (10) years
