Features
-
- Comfortable fit
- Offers full monitor movement and improved ergonomics
-
- More productivity
- Spread work across two screens in landscape or portrait view
-
- Protect your space
- Rotation-stop base keeps arm from hitting the wall or other desks
-
- Fully assembled
- Just attach to your desk, add your monitors and adjust the tension
-
- Low profile
- Attaches securely with a desk clamp that fits in tight areas
-
- Quality design
- Built for years of use by passing our 10,000-cycle motion test
Specification
- UPC: 698833063639
- Part Number (color):
- 45-496-216 (white)
- 45-496-026 (polished aluminum)
- 45-496-224 (matte black)

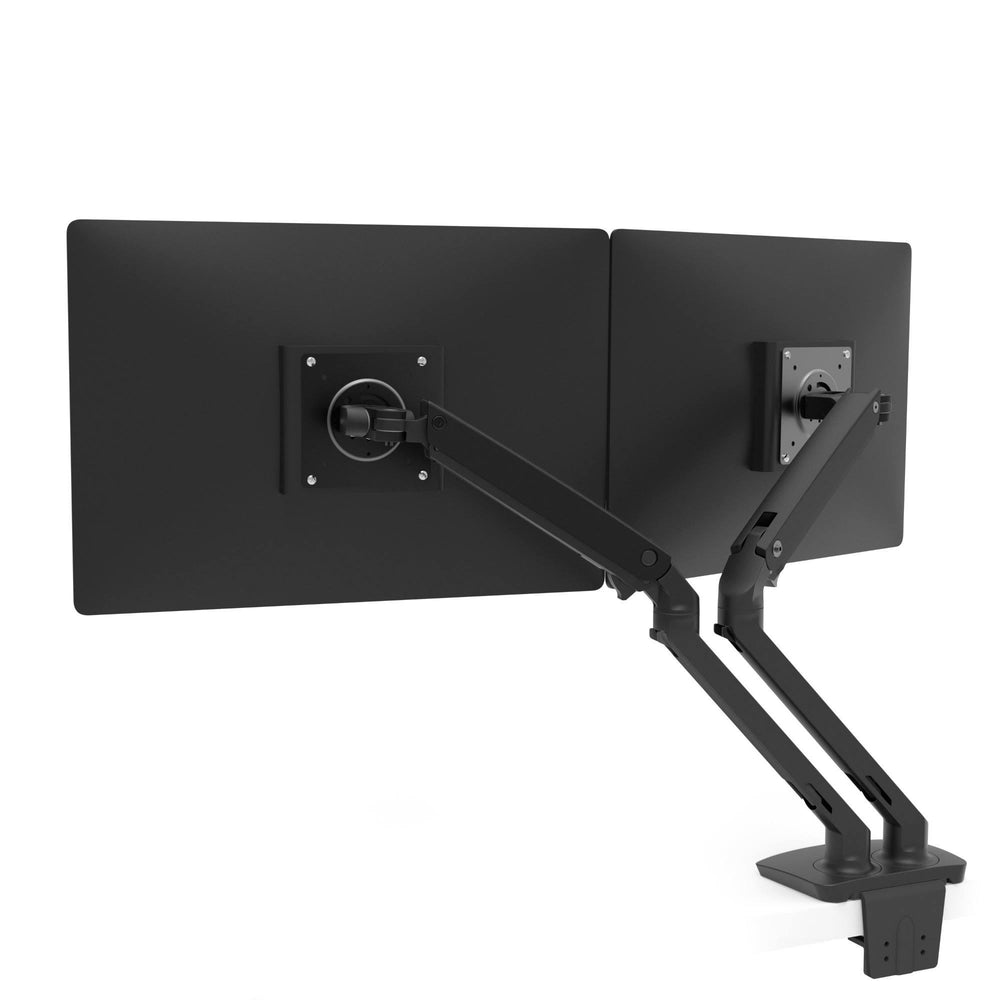

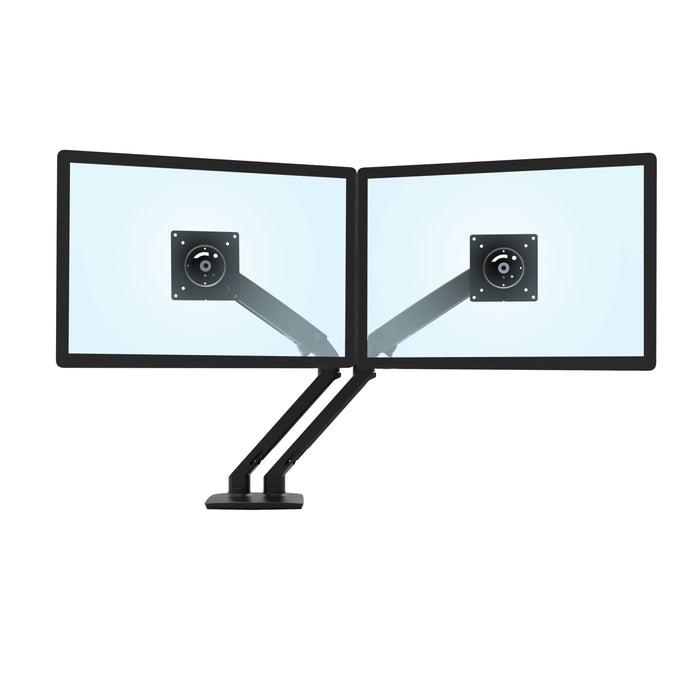

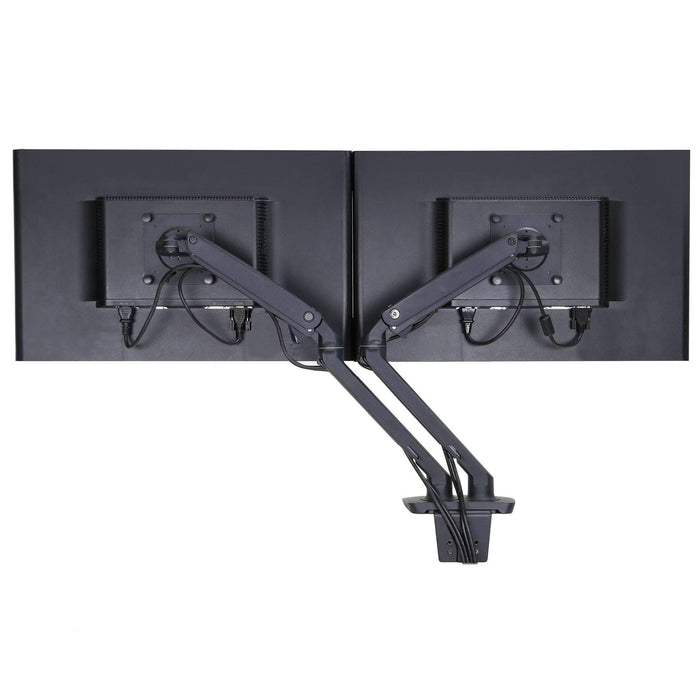

- Description: MXV Desk Mount Dual LCD Monitor Arm
- Includes fully assembled dual arm, two-piece desk clamp, mounting hardware
- Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)
- Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
- Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
- Mounting Options: Desk Clamp attaches to surface edge .47" to 1.25" (12 to 32 mm) thick
- An accessory Grommet Mount is available to install arm to desk via a through-hole in its surface: order 98-111
- Desk clamp has anti-rotation screws to prevent base from slipping
- Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- § Screens sizes up to 24" can be accommodated though there will be a reduction in adjustment capability
- * Weight Capacity: individual monitor weight = 7 to 20 lbs (3.2 to 9.1 kg); maximum combined weight of displays = 40 lbs (18.1 kg)
- † Tilt Range: 90° backward, 90° forward
- ‡ Pan Range: 180° at base; 360° between extension and arm. Rotation-stop on base can be disengaged at time of installation to increase range to 360°
- Extension Range: 17.8" (45 cm); maximum extension reach = 22.2" (56 cm) from back of base to VESA mounting plate
- Product Weight: 10.1 lbs (4.9 kg)
- Shipping Dimensions: 37.2" x 15.7" x 7.6" (94.5 x 39.8 x 19.5 cm)
- Shipping Weight: 15.1 lbs (6.9 kg)
- Warranty: Ten (10) years
