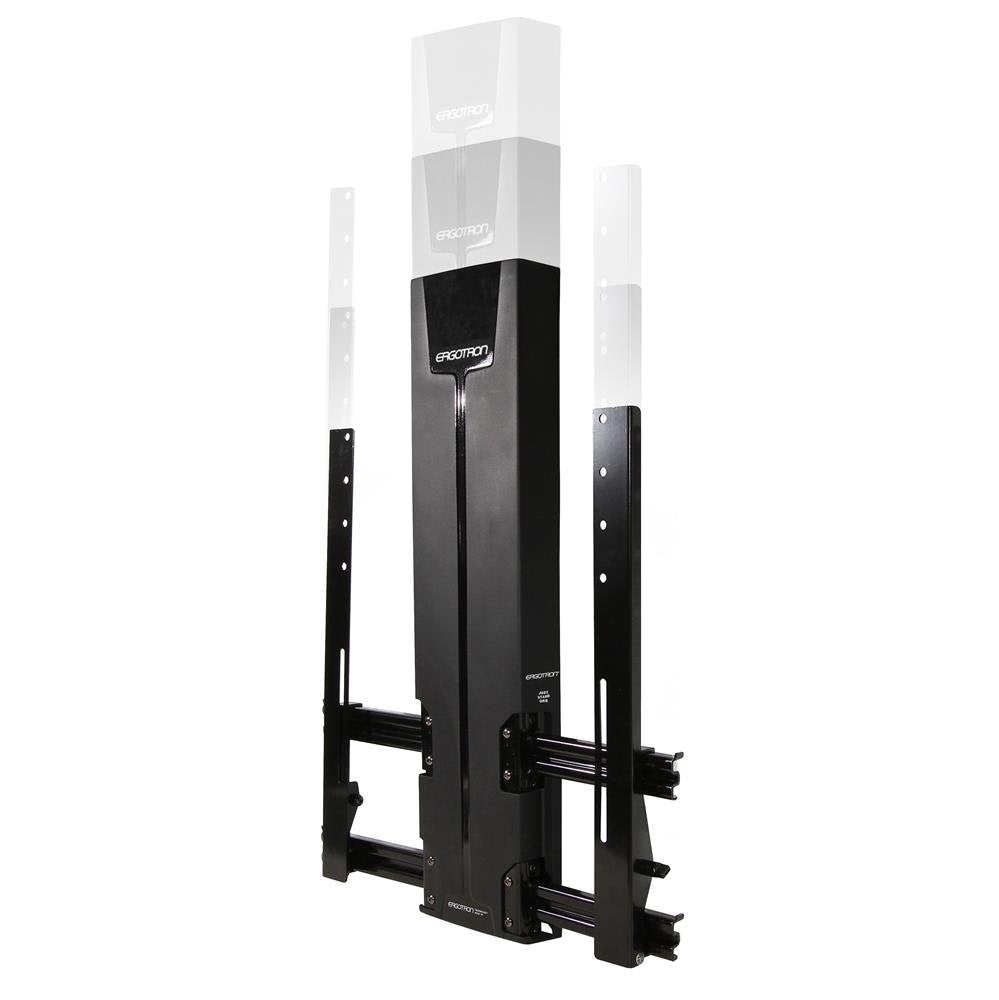

Effortlessly raise and lower your TV or large display 18" (46 cm) and tilt the screen up to 10° to avoid glare. This revolutionary design delivers unprecedented height adjustability in an extremely low profile module. Move your display with only a light touch; down to watch from a seated position or up for viewing while standing.
- Lift, lower and tilt for the perfect picture and comfortable viewing
- Display/TV moves with only a light touch with patented CF™ technology
- Discreet mounting hardware nearly disappears
- Raise TV during standing activities
- Display stays close to the wall, out of the way; mount depth is 2" (5 cm)
- Easy to use—simple installation and effortless operation
- Ratchet-free tilting
Specifications
- UPC: 698833035131
- Part Number: 61-061-085
- Description: Glide Wall Mount, HD, Heavy Duty (black)
- Includes low-profile lift module, mounting template, tilt brackets, installation and mounting hardware, cable management hardware
- † Screen Size is approximate only. Use Display Weight and VESA hole pattern to determine compatibility, i.e., stated screen size may be exceeded as long as display weight does not exceed weight capacity
- Glide Wall Mount will be hidden behind display in most cases when used with screen size of 46" or greater; when used with screens smaller than 46", the mount may be visible
- * Mounting holes must fit within spacing range below:
Horizontal = 200 mm (min.) to 400 mm (max.)
Vertical = 100 mm (min.) to 400 mm (max.) - Distance from wall to back of display = 2" (5 cm)
- Shipping Weight: 32.25" x 18" x 5" (82 x 46 x 12.5 cm)
- Shipping Weight: 30 lbs (13.5 kg)
- Warranty: Five (5) years
